Stainless Steel Reducer ASME B16.9 Butt Weld Concentric Eccentric Reducer Fitting

Stainless Steel ASME B16.9 Butt Weld Concentric Eccentric Reducer Pipe Fitting

1. Product Description

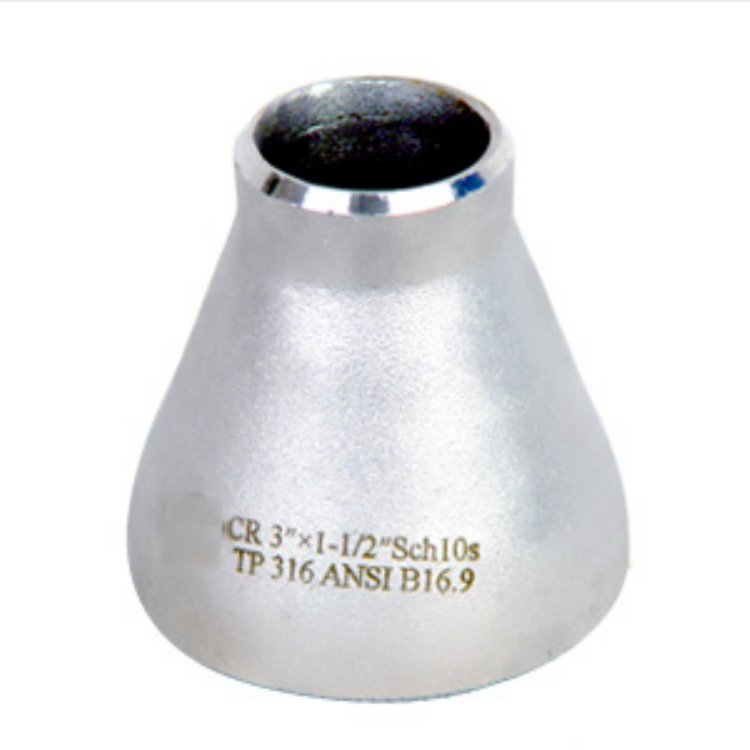

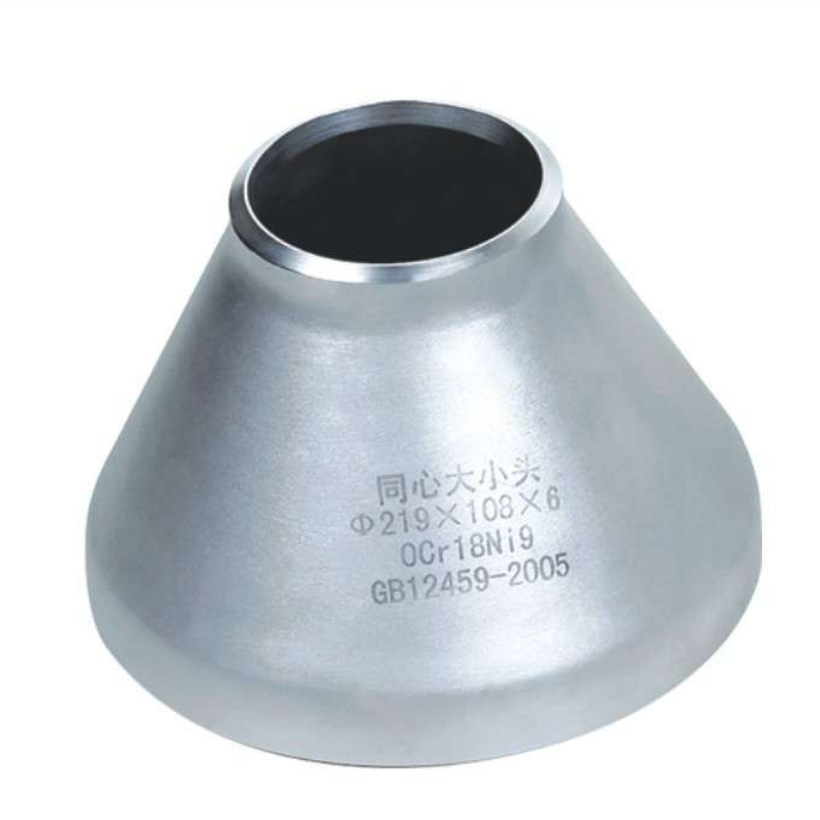

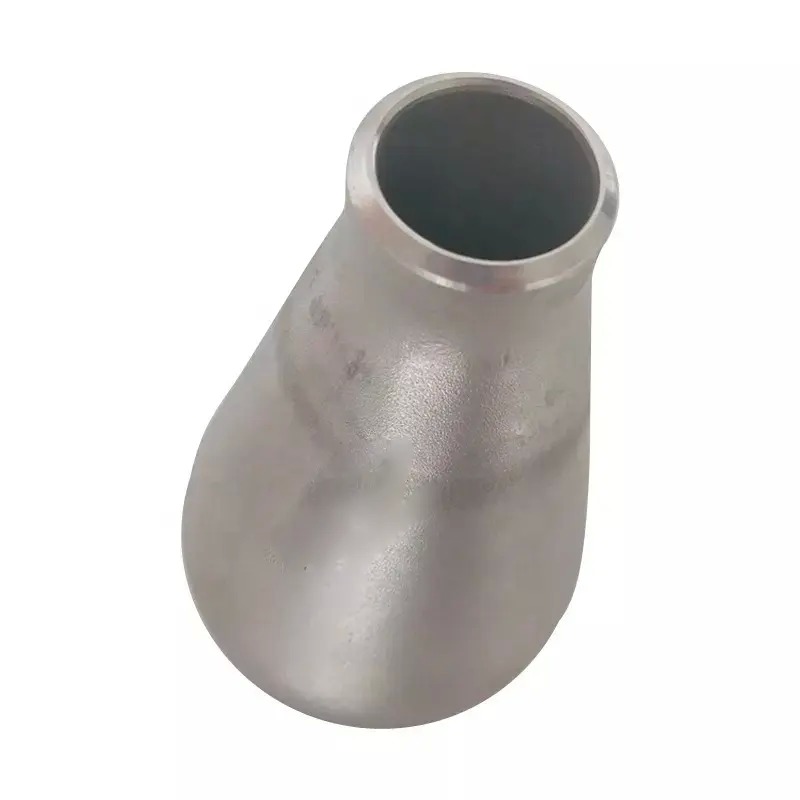

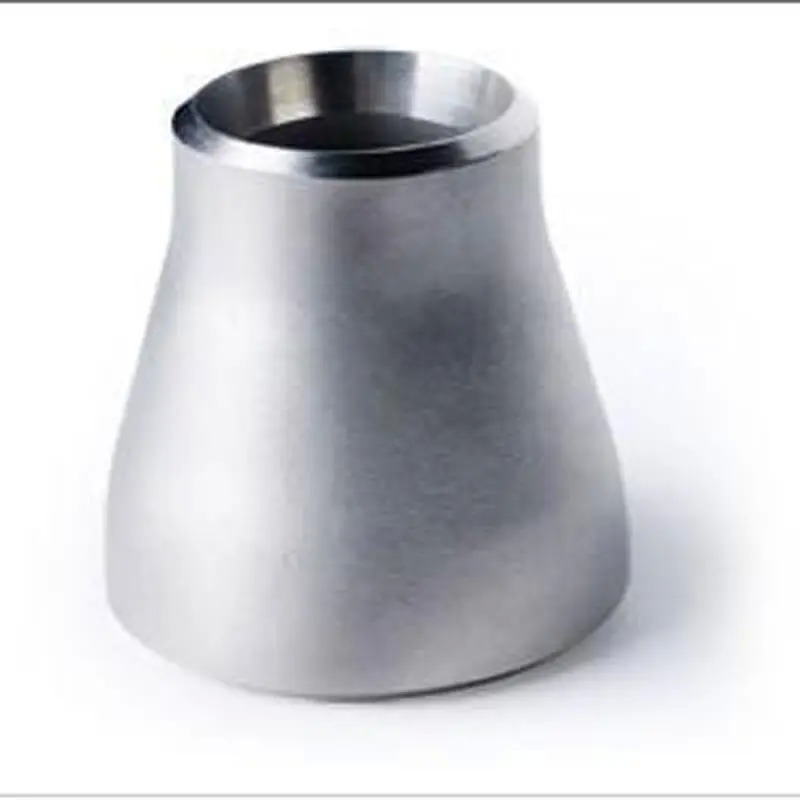

Stainless Steel Reducer (also known as Reducer Fitting or Reducing Pipe) is a pipe fitting used to connect two pipes of different diameters in piping systems. Manufactured from high-quality stainless steel, it is mainly classified into two types: Concentric Reducer and Eccentric Reducer. The concentric reducer has both ends aligned on the same centerline, suitable for vertical pipelines; the eccentric reducer has offset centerlines, suitable for horizontal pipelines to prevent fluid accumulation.

The manufacturing processes include reduction pressing, expansion pressing, combined reduction and expansion pressing, as well as stamping forming. Seamless products range from 1/2″ to 20″ (DN15–DN500), while welded products range from 1/2″ to 48″ (DN15–DN1200). The products comply with international standards including GB/T12459, GB/T13401, ASME B16.9, MSS SP-43, DIN, JIS, etc..

2. Product Applications

1. Diameter Transition Connection: Through the design of different calibers at both ends, it enables direct transition connection between pipes of different diameters, resolving installation challenges caused by diameter discrepancies.

2. Smooth Fluid Conveyance: Achieves smooth reducing transfer of fluids (liquids and gases), reduces fluid resistance, and ensures the tightness, stability and long service life of the pipeline system.

3. Flow Regulation and Control: When pipeline flow fluctuates, the reducer can adjust its diameter to stabilize the flow rate, reducing turbulence and fluid shock.

4. System Integration: Used at pump inlets and outlets to prevent cavitation, as well as for connection with instruments such as flow meters and control valves.

​3.Product Advantages

• Excellent Corrosion Resistance: Stainless steel material offers exceptional corrosion resistance, suitable for chemical, marine, food and other corrosive environments. 316L grade stainless steel provides 30% higher corrosion resistance than 304 stainless steel.

• High Pressure and Temperature Resistance: Stainless steel material can withstand relatively high pressure and temperature, maintaining structural integrity under harsh conditions.

• Rust-Free and Long Service Life: Stainless steel does not rust, maintaining good appearance and function over a long period with extended service life.

• Wide Range of Specifications and Flexible Customization: Available in sizes from DN15 to DN1200, with support for custom specifications based on customer requirements.

• Excellent Weldability: Stainless steel offers good weldability, enabling butt weld connections that form permanent, leak-proof piping joints.

• Hygienic and Easy to Clean: Smooth surface finish facilitates easy cleaning and sterilization, making it an ideal choice for hygienic applications.

4.Key Product Parameters



FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
