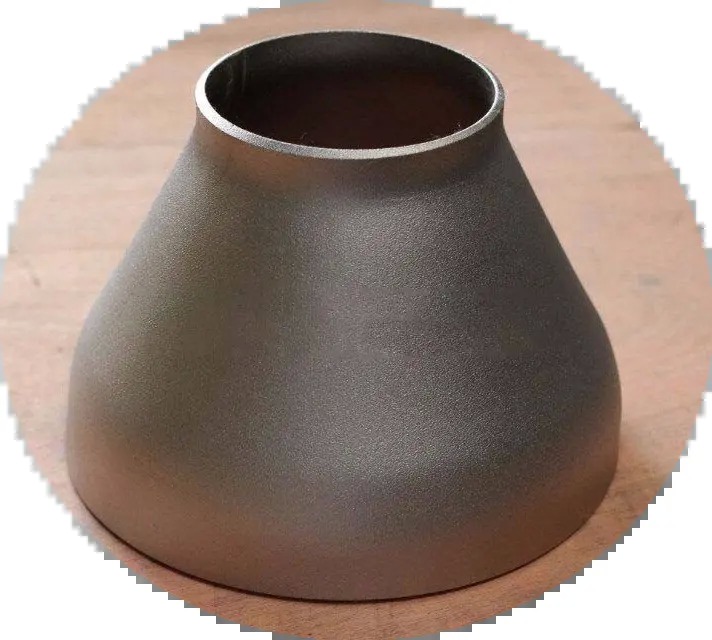

ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings

  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
起源の場所 中国、上海
ブランド名 TOBO
証明 ISO/TUV/SGS
モデル番号 ステンレス鋼の減力剤
最小注文数量 1個
価格 交渉可能
パッケージの詳細 標準送料パッケージ
受渡し時間 15-30就業日
支払条件 T/T、ウェスタンユニオン
供給の能力 10 トン/月
商品の詳細
製品名 ANSI B16.9 ステンレス鋼突合せ溶接偏心減速機クラス 150 管継手 表面仕上げ サテン/ミラー
表面の色 銀 最大圧力 3000 psi
種類 シームレス 肉厚 Sch5s-Sch160
標準 ASME B16.9、ANSI、DIN 表面 モーラー/サテン
表面処理 ポリッシュ 接続タイプ 溶接された
温度範囲 -20°Cから400°C 幅 2-3/8 inに
メーカー スミスコー 形 同心型または異心型
原産国 米国 仕上げる ポリッシュ、サテン、またはマット
ハイライト

ANSI B16.9 Stainless Steel Reducer

,

Eccentric Butt Weld Reducer

,

Class 150 Pipe Fittings
メッセージ
製品の説明

ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings


1. Product Description

Stainless Steel Reducer is a precision pipe fitting engineered to connect pipes of different diameters with smooth inner-wall transition. Manufactured by cold or hot forming, it is available in Concentric (center‑aligned) and Eccentric (flat‑side offset) designs, ensuring turbulence‑free flow, minimal pressure drop, and long‑term service reliability in demanding environments.


2. Product Applications

  • Oil & gas gathering and transmission lines

  • Chemical, petrochemical and refining plants

  • Municipal water supply and wastewater treatment

  • Power generation (thermal, nuclear, renewable)

  • Pharmaceutical, biotech and clean‑room facilities

  • Food, dairy and beverage processing

  • Offshore platforms, shipbuilding and marine piping

  • Pulp, paper and textile mills

  • HVAC and industrial refrigeration systems


​3.Product Advantages

  • Premium austenitic and duplex stainless steels – excellent resistance to pitting, crevice corrosion and stress corrosion cracking.

  • High mechanical strength and fatigue resistance, suitable for cyclic pressure and temperature loads.

  • Precision machining ensures tight dimensional control and leak‑free butt‑weld or socket‑weld connections.

  • One‑piece forming (no longitudinal seam) reduces weak points; welded versions also available for large diameters.

  • Minimal maintenance – inherently rust‑proof, weather‑proof and chemical‑resistant.

  • Optimised internal profile yields pressure loss <5% over a wide service range (-20°C to 450°C with certain grades).

  • Full customisation – material grades, wall schedules, surface finishes and end preparations available on request.

​

​ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings 0​

4.Key Product Parameters





Parameter Specification / Value
Material Grades 304, 304L, 316, 316L, 317L, 321, 310S, 347, 904L, Duplex 2205, Super Duplex 2507
Manufacturing Process Seamless (cold‑drawn / hot‑finished) or Welded (plate‑formed)
Size Range – Seamless 1/2" – 20" (DN15 – DN500)
Size Range – Welded 1/2" – 48" (DN15 – DN1200)
Wall Thickness Schedules SCH 5S, 10S, 20S, 40S, 80S, STD, XS, XXS (1.0 – 30 mm)
Reducer Type Concentric; Eccentric
End Connection Butt‑weld (BW); Socket‑weld (SW)
End Bevel Preparation Beveled ends per ASME B16.25 / DIN 2616 (for BW); square cut for SW
Dimensional Tolerances OD: ±1.5 mm; ID: ±0.5 mm; Wall thickness: ±12.5% (varies by standard)
Ovality (out‑of‑roundness) ≤1% of nominal OD (seamless); ≤1.5% (welded)
Surface Roughness As‑rolled: Ra ≤ 6.3 µm; Polished: Ra ≤ 3.2 µm; Electropolished: Ra ≤ 0.8 µm
Hardness (max) ≤187 HB (for 304/316); ≤217 HB (for duplex grades)
Density 7.9 g/cm³ (austenitic); 7.8 g/cm³ (duplex)
Tensile Strength (min) ≥515 MPa (316L); ≥620 MPa (duplex)
Yield Strength (min) ≥205 MPa (316L); ≥450 MPa (duplex)
Non‑destructive Testing (NDT) Radiography (RT), Ultrasonic (UT), Dye‑penetrant (PT), Magnetic particle (MPI) – available upon request
Hydrostatic / Pneumatic Test Optional, test pressure per ASME B16.9 or customer specification
Marking Laser / stamp: material grade, size, schedule, standard, heat number, manufacturer's logo
Packaging Plywood cases, wooden pallets, with plastic end caps and moisture‑proof wrapping
Delivery Condition Annealed and pickled; or solution‑treated + polished; or as‑per‑customer finish
Applicable Standards ASME B16.9, B16.28, MSS SP‑43, DIN 2616, JIS B2313, GB/T12459, GB/T13401, HG/T21635
Service Temperature Range -20°C to 400°C (standard); up to 800°C for high‑temperature grades
Pressure Loss (typical) <5% of inlet pressure under normal flow conditions



FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
