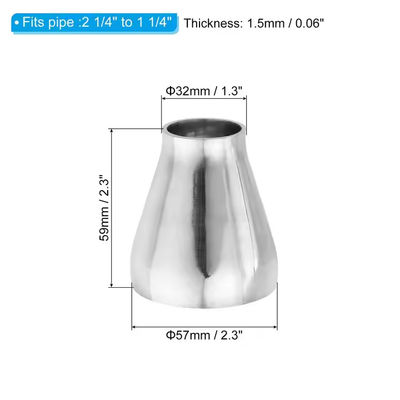

ASTM A403 WP321/321H Titanium Stabilized Stainless Steel Reducer for High Temperature Service up to 800 Degree C ASME B16.9 Pipe Fitting
商品の詳細
| タイプ | 同心の減力剤、風変りな減力剤 | 材料 | ASTM A403 WP321、WP321H |
|---|---|---|---|
| サイズ範囲 | 1/2 インチ～48 インチ (DN15～DN1200) | 肉厚 | SCH5S、SCH10S、SCH40S、SCH80S、SCH160、XXS |
| 標準 | ASME B16.9、MSS SP75、EN10253、DIN2605、JIS B2312 | 特集 | 高温使用向けに安定化されたチタン |
| ハイライト | Concentric Pipe Reducer,WP321H Butt Weld Reducer,Stainless Steel Reducer |
||
製品の説明
ASTM A403 WP321/321H Stainless Steel Concentric & Eccentric Reducer
Our ASTM A403 WP321/321H stainless steel reducers are titanium-stabilized austenitic stainless steel fittings engineered for superior performance in high-temperature applications. The titanium addition prevents chromium carbide precipitation during welding and service at elevated temperatures up to 800°C, making them the preferred choice for heat exchangers, boiler systems, and thermal processing equipment.
Product Specifications
| Type | Concentric Reducer, Eccentric Reducer |
|---|---|
| Material | ASTM A403 WP321, WP321H |
| Size Range | 1/2 Inch to 48 Inch (DN15-DN1200) |
| Wall Thickness | SCH5S, SCH10S, SCH40S, SCH80S, SCH160, XXS |
| Form | Seamless and Welded |
| Standard | ASME B16.9, MSS SP75, EN10253, DIN2605, JIS B2312 |
| Special Feature | Titanium Stabilized for High Temperature Service up to 800°C |
| Application | Heat Exchangers, Boilers, Thermal Processing, High Temperature Piping |
Dimension Chart (ASME B16.9 Reducer)
| DN | NPS | Large OD Series A (mm) | Large OD Series B (mm) | End to End H (mm) |
|---|---|---|---|---|
| 20x15 | 3/4x1/2 | 26.9 | 25 | 38 |
| 25x20 | 1x3/4 | 33.7 | 32 | 51 |
| 32x25 | 1-1/4x1 | 42.4 | 38 | 51 |
| 40x32 | 1-1/2x1-1/4 | 48.3 | 45 | 64 |
| 50x40 | 2x1-1/2 | 60.3 | 57 | 76 |
| 65x50 | 2-1/2x2 | 73.0 | 76 | 89 |
| 80x65 | 3x2-1/2 | 88.9 | 89 | 89 |
| 100x80 | 4x3 | 114.3 | 108 | 102 |
| 125x100 | 5x4 | 141.3 | 133 | 127 |
| 150x125 | 6x5 | 168.3 | 159 | 140 |
| 200x150 | 8x6 | 219.1 | 219 | 152 |
| 250x200 | 10x8 | 273.0 | 273 | 178 |
| 300x250 | 12x10 | 323.9 | 325 | 203 |
| 350x300 | 14x12 | 355.6 | 377 | 330 |
| 400x350 | 16x14 | 406.4 | 426 | 356 |
| 450x400 | 18x16 | 457.0 | 478 | 381 |
| 500x450 | 20x18 | 508.0 | 529 | 508 |
Chemical Composition of WP321/321H
| Element | C | Mn | Si | Cr | Ni | Ti | P | S |
|---|---|---|---|---|---|---|---|---|
| WP321 | max 0.08 | max 2.00 | max 1.00 | 17.0-19.0 | 9.0-12.0 | 5xC min | max 0.045 | max 0.030 |
| WP321H | 0.04-0.10 | max 2.00 | max 1.00 | 17.0-19.0 | 9.0-12.0 | 4xC min | max 0.045 | max 0.030 |
Key Advantages
- Titanium stabilized to prevent intergranular corrosion after welding
- Excellent oxidation resistance at temperatures up to 800°C
- Superior creep and stress rupture properties vs standard 304/304L
- ISO/TUV/SGS certified with full material traceability
- Widely used in thermal power plants, refineries, and chemical processing
- Non-destructive testing available: UT, RT, PT upon request
